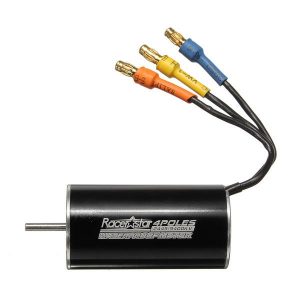

Racerstar 2445 Motor Senseless Brushless Waterproof 5400/3600/3000KV 1/16 1/18 RC Car Part $13.09
Click to enlarge

YRRC MINI PIX V6 F4 SMT32f407 Flight Controller Built-in ICM-20689 Gyro MS5607 Barometer for RC Drone

$39.62

YRRC MINI PIX V6 F4 SMT32f407 Flight Controller Built-in ICM-20689 Gyro MS5607 Barometer for RC DroneClick Here to buy compatible M8N GPS altogether.Specification:Item name: YRRC MINI PIX F4 flight controllerSize(L*W*H): 36*36MM(PCB only )Weight: 9g(FC Board only)USB voltage: 5V+-0.4VPM module input voltage: 5V+-0.4VServo input voltage: 5-16VFC voltage: 5VTemperature range: -40-85*cFMU Processor: SMT32f407(32bit Arm Cortx-M7 168Mhz)Sensor: Gyroscope: ICM-20689Accelerometer: ICM-20689Barometer: MS5607Compass: IST8310Support for three at most, 1 x Compass with built-in, 2x External support two at most.Interface Type: CH1.25GPS UART:X2 (Support for Dual GPS)Telemetry UART:X2I2C:X1 (extended support)PWM Output:X6RC in signal Input:PPM/SBUSCurrentVoltage Input: X1Servo BEC Input:X1USB Port:X1SPI Port:X1Power moduleBEC IN 7.5v-55v OUT 5.2V 2AFeatures:-New official hardware, non V246 version hardware-New open-source hardware design, Stable sensor(ICM-20689/IST8310 sensor, MS5607 baro)-100% use Arduploit official firmware, 100% Missionplanner official ground station-100% support Arduploit compatible various hardware(RTK, GPS)-Reservebuilt-in expandable IMU interface,support second IMU module extension-Support up to 6x PWM signal output,more I/O ports-Support dual GPS module, double outer compass function, support up to 3 compass redundancy-Support RC drone, RC car, RC boat, helicopter, fixed wing(including vertical takeo

SKU: 2202_10523_1433721 Category:
Description

Description

YRRC MINI PIX V6 F4 SMT32f407 Flight Controller Built-in ICM-20689 Gyro MS5607 Barometer for RC DroneClick Here to buy compatible M8N GPS altogether.Specification:Item name: YRRC MINI PIX F4 flight controllerSize(L*W*H): 36*36MM(PCB only )Weight: 9g(FC Board only)USB voltage: 5V+-0.4VPM module input voltage: 5V+-0.4VServo input voltage: 5-16VFC voltage: 5VTemperature range: -40-85*cFMU Processor: SMT32f407(32bit Arm Cortx-M7 168Mhz)Sensor: Gyroscope: ICM-20689Accelerometer: ICM-20689Barometer: MS5607Compass: IST8310Support for three at most, 1 x Compass with built-in, 2x External support two at most.Interface Type: CH1.25GPS UART:X2 (Support for Dual GPS)Telemetry UART:X2I2C:X1 (extended support)PWM Output:X6RC in signal Input:PPM/SBUSCurrentVoltage Input: X1Servo BEC Input:X1USB Port:X1SPI Port:X1Power moduleBEC IN 7.5v-55v OUT 5.2V 2AFeatures:-New official hardware, non V246 version hardware-New open-source hardware design, Stable sensor(ICM-20689/IST8310 sensor, MS5607 baro)-100% use Arduploit official firmware, 100% Missionplanner official ground station-100% support Arduploit compatible various hardware(RTK, GPS)-Reservebuilt-in expandable IMU interface,support second IMU module extension-Support up to 6x PWM signal output,more I/O ports-Support dual GPS module, double outer compass function, support up to 3 compass redundancy-Support RC drone, RC car, RC boat, helicopter, fixed wing(including vertical takeo
