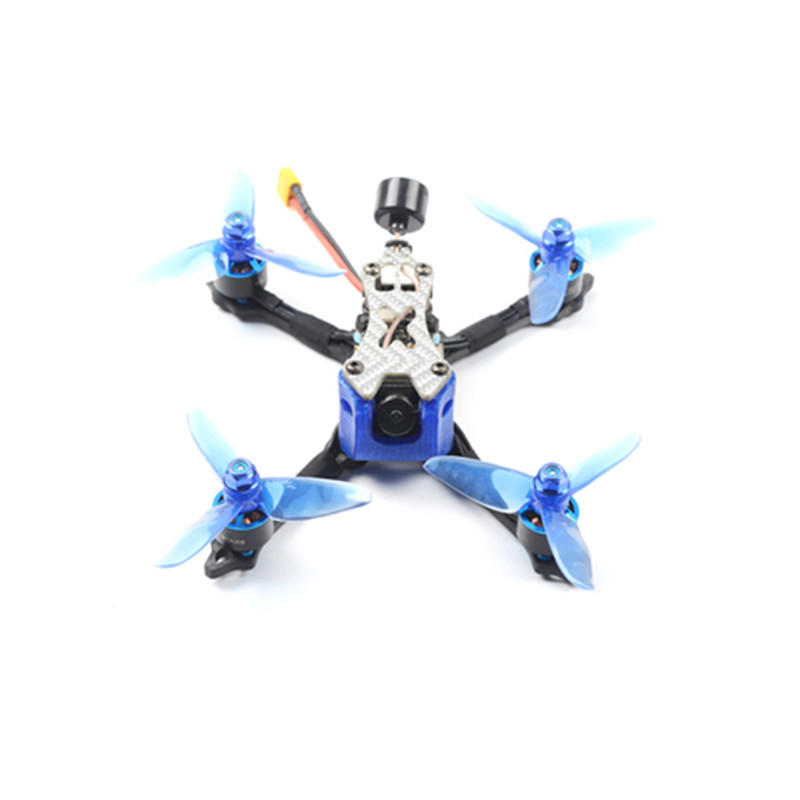

SKYSTARS Ratel 140X 3-6S FPV Racing Drone PNP/BNF Integrated Type F4 8K OSD Runcam Nano 2 VTX 200mW SmartAudio – DSMX/DS

$151.48

Specifications:Brand:SKYSTARSItem Name: Ratel 140X 3-6S RC DroneFrame KitFrame Kit:Name: Skystars Ratel 140XWheelbase: 145mmArm Plate Thickness: 4mmTOPBottom Plate Thickness: 1.5mmMaterial: 3k Carbon FiberTPUScrew: TAIWAN YFS BRAND SCREW 12.9 level screwWeight: 49gFlight ControlMicro F4 Flight Control Board ( D-Shot Version):MPU: MPU6000-SPICPU: STM32F405RGT6, dual 8K.Built-in Betaflight OSD to adjust PIDBEC Output: 5V@3ASize: 25x25mm board, 2mm mounting holes (M2)Weight:2.3gSupport Subs/PPM/DSMX receiverESC(3-6S)40A 3-6S Blheli_S 4 in 1 ESC:Input Voltage: 3-6S Lipo batteryConstant Current: 40APeak Current: 50ABEC Ouput: NOFirmware: BLheliSSize: 27x27mm (main board) 27x31mm ( including pad)Installing Hole: 20x20mm, M2Weight: 5.5gCPU: BB21MOS Tube: TOP QUALITY MOSFETSupport Damped Mode, Oneshot125, Oneshot42, Multishot, Dshot150/300/600, forward and reverseTransmitterMini FPV Transmitter:Output power: 25mW/100mW/200mW switchableControl mode:button OR Channel changes and Pitmode setting through PWMBAT: 7-26V,BEC 5V-1A200mA—-200mWVideo system: NTSC/PALAntenna: RPSMAFrequency: 5.8GHz 5 bands 48channels, with Raceband: 5362-5865 MHZSize: 24*24mm(L*W),Hole:20*20mmWeight: 2.4gMotor(3-6S)ST1408 KV 2400, race editionWeight: 17gSize:17X30mm*NMB bearing of high RPM for steady operation*Arc magnets.*Ultra lightCameraRuncam nano 2Image Sensor: 1/3 CMOSHorizontal Resolution: 700TVLLens: 2.1mm(M8) FOV 155Signal System: NTSC / PALS/N Ratio: 50dBElectronic Shutter Speed: AutoAuto Gain Con

SKU: 2202_10523_1490799 Category:
Description

Description

Specifications:Brand:SKYSTARSItem Name: Ratel 140X 3-6S RC DroneFrame KitFrame Kit:Name: Skystars Ratel 140XWheelbase: 145mmArm Plate Thickness: 4mmTOPBottom Plate Thickness: 1.5mmMaterial: 3k Carbon FiberTPUScrew: TAIWAN YFS BRAND SCREW 12.9 level screwWeight: 49gFlight ControlMicro F4 Flight Control Board ( D-Shot Version):MPU: MPU6000-SPICPU: STM32F405RGT6, dual 8K.Built-in Betaflight OSD to adjust PIDBEC Output: 5V@3ASize: 25x25mm board, 2mm mounting holes (M2)Weight:2.3gSupport Subs/PPM/DSMX receiverESC(3-6S)40A 3-6S Blheli_S 4 in 1 ESC:Input Voltage: 3-6S Lipo batteryConstant Current: 40APeak Current: 50ABEC Ouput: NOFirmware: BLheliSSize: 27x27mm (main board) 27x31mm ( including pad)Installing Hole: 20x20mm, M2Weight: 5.5gCPU: BB21MOS Tube: TOP QUALITY MOSFETSupport Damped Mode, Oneshot125, Oneshot42, Multishot, Dshot150/300/600, forward and reverseTransmitterMini FPV Transmitter:Output power: 25mW/100mW/200mW switchableControl mode:button OR Channel changes and Pitmode setting through PWMBAT: 7-26V,BEC 5V-1A200mA—-200mWVideo system: NTSC/PALAntenna: RPSMAFrequency: 5.8GHz 5 bands 48channels, with Raceband: 5362-5865 MHZSize: 24*24mm(L*W),Hole:20*20mmWeight: 2.4gMotor(3-6S)ST1408 KV 2400, race editionWeight: 17gSize:17X30mm*NMB bearing of high RPM for steady operation*Arc magnets.*Ultra lightCameraRuncam nano 2Image Sensor: 1/3 CMOSHorizontal Resolution: 700TVLLens: 2.1mm(M8) FOV 155Signal System: NTSC / PALS/N Ratio: 50dBElectronic Shutter Speed: AutoAuto Gain Con
