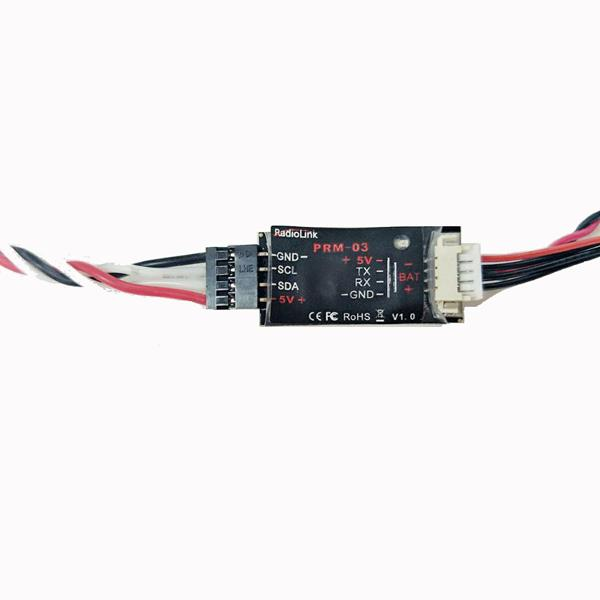

Radiolink PRM-03 OSD Information Telemetry Module for AT9 AT9S AT10 AT10II

Description

Radiolink PRM-03 OSD Information Telemetry Module for AT9 AT9S AT10 AT10IIOSD Telemetry Sensor: PRM-03,OSD Telemetry module transmits the data from the flight controller and shows the data of SPEED, RISE, THRO, VOLT, LATI, LONG, ALT, GPS, RSSI, MODE, YAW, ROLL, PITC, DIST in the display screen of AT9, AT9S, AT10 or AT10II.Description:Brand Name: RadiolinkItem Number: PRM-03Item name: OSD information telemetry moduleSize: 27*13mmWeight: 6g(including the wires)Features:* So far, OSD information telemetry module PRM-03 is compatible with flight controller PIX and APM.* Support RadioLink receivers R9D, R9DS, R10D, R10DII, R10DS and R12DS.* PRM-03 can telemetry Speed, Rise, Throttle, Voltage, Longitude, Latitude, Altitude, GPS, RSSI, Flight Mode, YAW, ROLL, PITC, Distance.* PRM-03 is compatible with 1 cell to 12 cells battery(3.7~50.4V).Connection:1. Connect one end of the telemetry module PRM-03 to R9D/R9DS/R10D/R10DII/R10DS/R12DS and the other end to battery if you just need feedback battery voltage. Same function as RadioLink PRM-01 if you connect like that.2. If you want to feedback Speed, Rise, Throttle, Voltage, Longitude, Latitude, Altitude, GPS, RSSI, Flight Mode, YAW, ROLL, PITC, Distance information, please connect one end of the OSD information telemetry module PRM-03 to R9D/R9DS/R10D/R10DII/R10DS/R12DS and the other end to the TELEM port of PIX or APM.Note: The old version AT9 and AT10 have to upgrade the firmware when if use PRM-03 to telemetry OSD information. Upgrad
