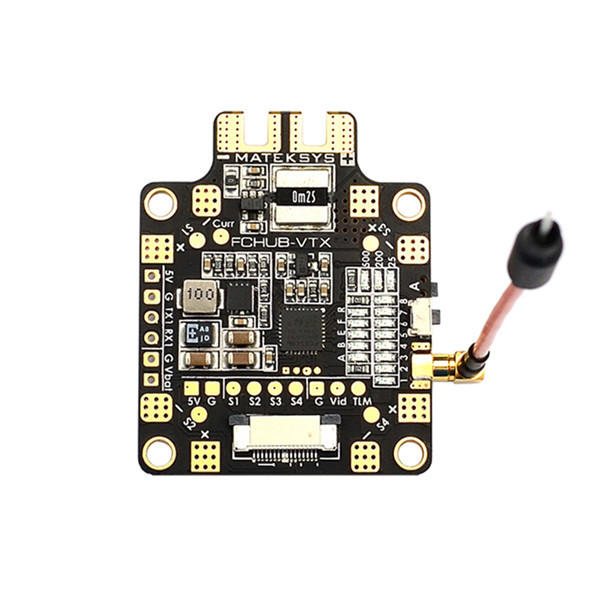

Matek Systems FCHUB-VTX 6~27V PDB 5V/1A BEC w/ 5.8G 40CH 25/200/500mW Switchable RC Drone Video Transmitter

$40.28

Matek Systems FCHUB-VTX 6~27V PDB 5V/1A BEC w/ 5.8G 40CH 25/200/500mW Switchable Video TransmitterSpecification (user manual):Brand name: Matek SystemsItem name:FCHUB-VTXWeight:14g (w/ MMCXwhip antenna)Size: 36*45*7mm w/30.5mm mountingInput voltage: 6~27V(2~6S LiPo)PDB: 4*30A (4*46A, 5 seconds)Current Sensor: 184A (Scale 179)BEC Output: 5V/1A for Camera or FCVTX: 40 standard 5.8G channels, A/B/E/F/R BandVTX Output Power: 25, 200, 500mW switchableTraditional button+LED control of frequency and powerBFCMS (BFOSDLUA Script) control via FC UART _TXVideo signalTX5 are ready on FFC connected with MATEK FC F405-OSDSilicon wires connection with other brands FCFirmware upgradeableVTX Power Consumption: 3.1W Max. @ 500mWVideo Input Impedance: 75 OhmAudio Subcarrier Frequency: 6.5 MHzRF Connector: MMCXVideo Format: NTSC/PALPacakge included:1* FCHUB-VTX board1* MMCX to SMA Female, RG178 cable 9cm1* MMCX 5.8G whip antenna, RG178 8cm1* Rubycon ZLH 35V/470uF Low ESR capacitor

Buy product

SKU: 2202_10523_1201392 Category:
Description

Description

Matek Systems FCHUB-VTX 6~27V PDB 5V/1A BEC w/ 5.8G 40CH 25/200/500mW Switchable Video TransmitterSpecification (user manual):Brand name: Matek SystemsItem name:FCHUB-VTXWeight:14g (w/ MMCXwhip antenna)Size: 36*45*7mm w/30.5mm mountingInput voltage: 6~27V(2~6S LiPo)PDB: 4*30A (4*46A, 5 seconds)Current Sensor: 184A (Scale 179)BEC Output: 5V/1A for Camera or FCVTX: 40 standard 5.8G channels, A/B/E/F/R BandVTX Output Power: 25, 200, 500mW switchableTraditional button+LED control of frequency and powerBFCMS (BFOSDLUA Script) control via FC UART _TXVideo signalTX5 are ready on FFC connected with MATEK FC F405-OSDSilicon wires connection with other brands FCFirmware upgradeableVTX Power Consumption: 3.1W Max. @ 500mWVideo Input Impedance: 75 OhmAudio Subcarrier Frequency: 6.5 MHzRF Connector: MMCXVideo Format: NTSC/PALPacakge included:1* FCHUB-VTX board1* MMCX to SMA Female, RG178 cable 9cm1* MMCX 5.8G whip antenna, RG178 8cm1* Rubycon ZLH 35V/470uF Low ESR capacitor
