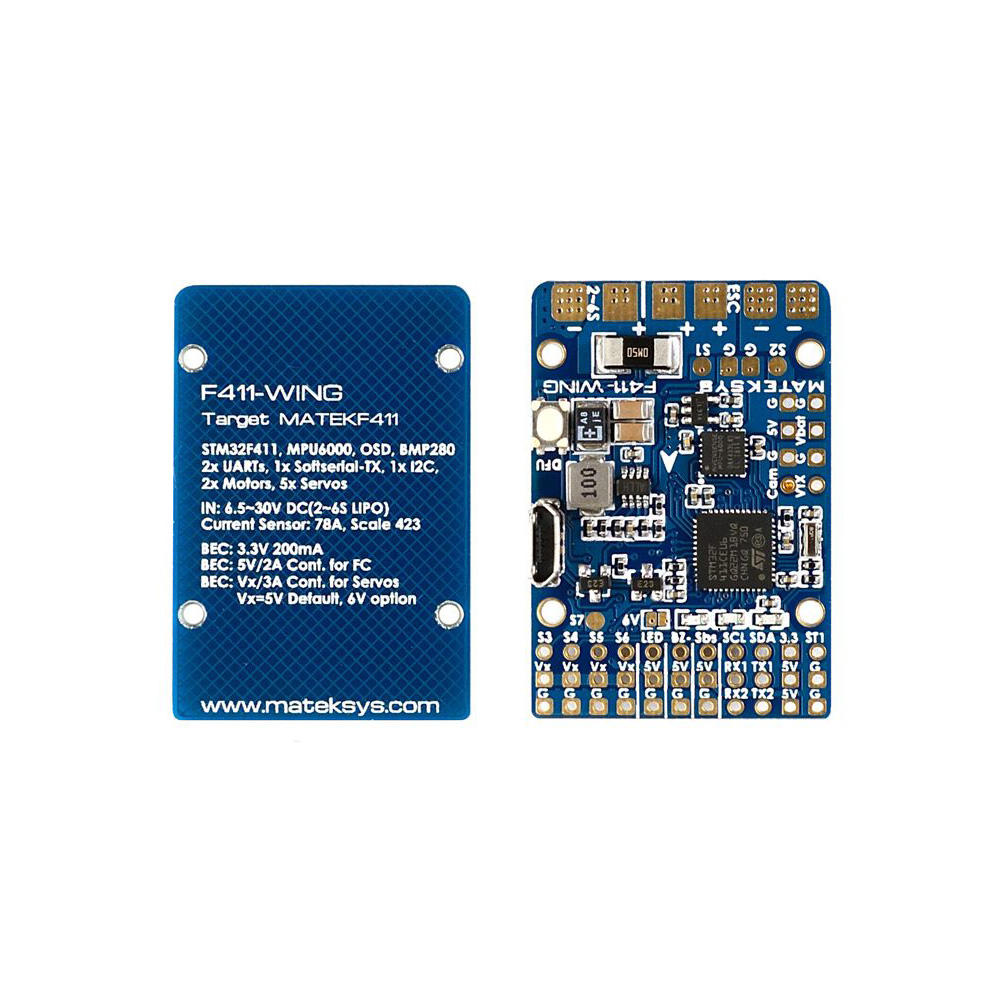

Matek Systems F411-WING (New) STM32F411 Flight Controller Built-in OSD for RC Airplane

$32.99

Matek Systems F411-WING (New) STM32F411 Flight Controller Built-in OSD for RC AirplaneDescription:Item number: Matek Systems F411-WING(New)MCU: 100MHz STM32F411IMU: MPU6000 accelerometer/gyro (SPI)Baro: BMP280 (I2C)OSD: INAV OSD w/ AT7456E chipBlackbox: NoVCP2x UARTs2x Motors, 5x Servos outputs1x I2C3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)Built in inverter for SBUS input (UART1-RX)SoftSerial_Tx1: ST1 pad by defaultPPM: ST1 pad with softserial disabledBattery Voltage Sensor: 1:10 (Scale 1100)WS2812 Led Strip : YesBeeper : YesRSSI: NoFC FirmwareINAV FlightTarget: MATEKF411PDBInput voltage range: 6.5~30V (2~6S LiPo) w/TVS protection2x ESC power padsCurrent Senor: 78A, 3.3V ADC, Scale 423BEC 5V outputDesigned for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, Buzzer, GPS module, AirSpeedContinuous current: 2 AmpsBEC Vx outputDesigned for ServosVoltage adjustable, 5V Default, 6V via jumperContinuous current: 3 AmpsBEC 3.3V outputDesigned for Baro / Compass module/ OLED and Spektrum RXLinear RegulatorContinuous current: 200mAPhysicalMounting: 24 x 24mm, 2mmDimensions: 41 x 28 x 10mmWeight: 7g (Total 12g w/ bottom plate and M2 standoffs)FirmwaresDownloads, click herePackage included:1 x Matek Systems F411-WING(New) STM32F411 Flight Controller

Buy product

SKU: 2202_10523_1323063 Category:
Description

Description

Matek Systems F411-WING (New) STM32F411 Flight Controller Built-in OSD for RC AirplaneDescription:Item number: Matek Systems F411-WING(New)MCU: 100MHz STM32F411IMU: MPU6000 accelerometer/gyro (SPI)Baro: BMP280 (I2C)OSD: INAV OSD w/ AT7456E chipBlackbox: NoVCP2x UARTs2x Motors, 5x Servos outputs1x I2C3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)Built in inverter for SBUS input (UART1-RX)SoftSerial_Tx1: ST1 pad by defaultPPM: ST1 pad with softserial disabledBattery Voltage Sensor: 1:10 (Scale 1100)WS2812 Led Strip : YesBeeper : YesRSSI: NoFC FirmwareINAV FlightTarget: MATEKF411PDBInput voltage range: 6.5~30V (2~6S LiPo) w/TVS protection2x ESC power padsCurrent Senor: 78A, 3.3V ADC, Scale 423BEC 5V outputDesigned for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, Buzzer, GPS module, AirSpeedContinuous current: 2 AmpsBEC Vx outputDesigned for ServosVoltage adjustable, 5V Default, 6V via jumperContinuous current: 3 AmpsBEC 3.3V outputDesigned for Baro / Compass module/ OLED and Spektrum RXLinear RegulatorContinuous current: 200mAPhysicalMounting: 24 x 24mm, 2mmDimensions: 41 x 28 x 10mmWeight: 7g (Total 12g w/ bottom plate and M2 standoffs)FirmwaresDownloads, click herePackage included:1 x Matek Systems F411-WING(New) STM32F411 Flight Controller
