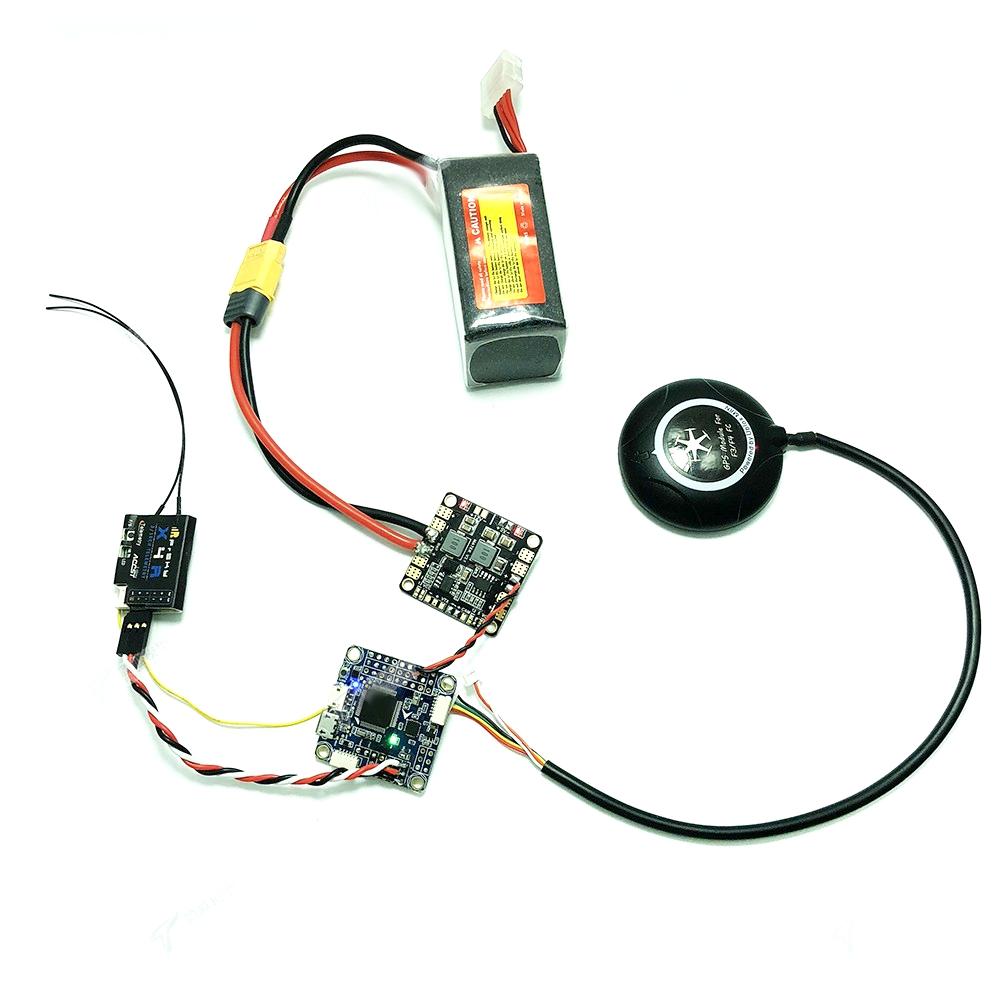

Inav F4 Deluxe 30.5×30.5mm Flight Controller Integrated with GPS Compass Baro OSD for RC Drone

$54.05

Inav F4 Deluxe 30.5×30.5mm Flight Controller Integrated with GPS Compass Baro OSD for RC DroneThis F4 + GPS kit is dedicated to navigation systems. The factory pre-brushed Inav 1.9 firmware. The hardware includes high-performance GPS, HMC5883 magnetometer, BM280 barometer, MPU6000 6-axis accelerometer and gyroscope, and full support for FPV navigation.DescriptionF4 Flight controller:-STM32 F405 MCU, Runs Inav 1.9 firmware-SBUS/PPM AND Spketrum DSMX Ports-Dshot support-Drag and Drop OSD configured via INAV Configurator-On-board Video Filter(only can supply 5V to VTX and Camera)-MPU6000 6 axis SPI GyroAccelerometer-Only 36x36mm, mount holes 30.5×30.5mm-Barometer BMP280-SD Card slot-5v3a SBEC-Uart 1 for GPS, Uart 3 for compassGPS:-Quick satellite searching, only need 15s to find 7 satellite in open space-Built-in compass-Support GPS+BD+SBAS, or GPS+GLONASS+SBAS-Wire order: Black(GND), Red(+5V),Green(TX),Yellow(RX),Orange(SCL),White(SDA)-Size 55mm*14mm-Wire length 310mm-Weight 35g-Number of satellites:Up to 26Feature:-Support Multi-rotor and fixed wing craft-Support Airmode/Acromode/Angle/Horizon basic FPV mode-Support Advanced Navigation mode: NAV GPS Position hold / NAV Alt hold / NAV Return Home/ NAV Way point-INAV OSD ready (GPS info/ Bat monitor / RSSI etc..)-SBUS/IBUS/DSMX/PPM Receiver compatible-LED_STRIP ready-BUZZER Ready-BLACKBOX Ready (SD Card slot)User Manual : Click HereNote: This combo doesnt integrate the current sensor.Package Include:1x Inav F4 Deluxe flight co

Buy product

SKU: 2202_10523_1311807 Category:
Description

Description

Inav F4 Deluxe 30.5×30.5mm Flight Controller Integrated with GPS Compass Baro OSD for RC DroneThis F4 + GPS kit is dedicated to navigation systems. The factory pre-brushed Inav 1.9 firmware. The hardware includes high-performance GPS, HMC5883 magnetometer, BM280 barometer, MPU6000 6-axis accelerometer and gyroscope, and full support for FPV navigation.DescriptionF4 Flight controller:-STM32 F405 MCU, Runs Inav 1.9 firmware-SBUS/PPM AND Spketrum DSMX Ports-Dshot support-Drag and Drop OSD configured via INAV Configurator-On-board Video Filter(only can supply 5V to VTX and Camera)-MPU6000 6 axis SPI GyroAccelerometer-Only 36x36mm, mount holes 30.5×30.5mm-Barometer BMP280-SD Card slot-5v3a SBEC-Uart 1 for GPS, Uart 3 for compassGPS:-Quick satellite searching, only need 15s to find 7 satellite in open space-Built-in compass-Support GPS+BD+SBAS, or GPS+GLONASS+SBAS-Wire order: Black(GND), Red(+5V),Green(TX),Yellow(RX),Orange(SCL),White(SDA)-Size 55mm*14mm-Wire length 310mm-Weight 35g-Number of satellites:Up to 26Feature:-Support Multi-rotor and fixed wing craft-Support Airmode/Acromode/Angle/Horizon basic FPV mode-Support Advanced Navigation mode: NAV GPS Position hold / NAV Alt hold / NAV Return Home/ NAV Way point-INAV OSD ready (GPS info/ Bat monitor / RSSI etc..)-SBUS/IBUS/DSMX/PPM Receiver compatible-LED_STRIP ready-BUZZER Ready-BLACKBOX Ready (SD Card slot)User Manual : Click HereNote: This combo doesnt integrate the current sensor.Package Include:1x Inav F4 Deluxe flight co
