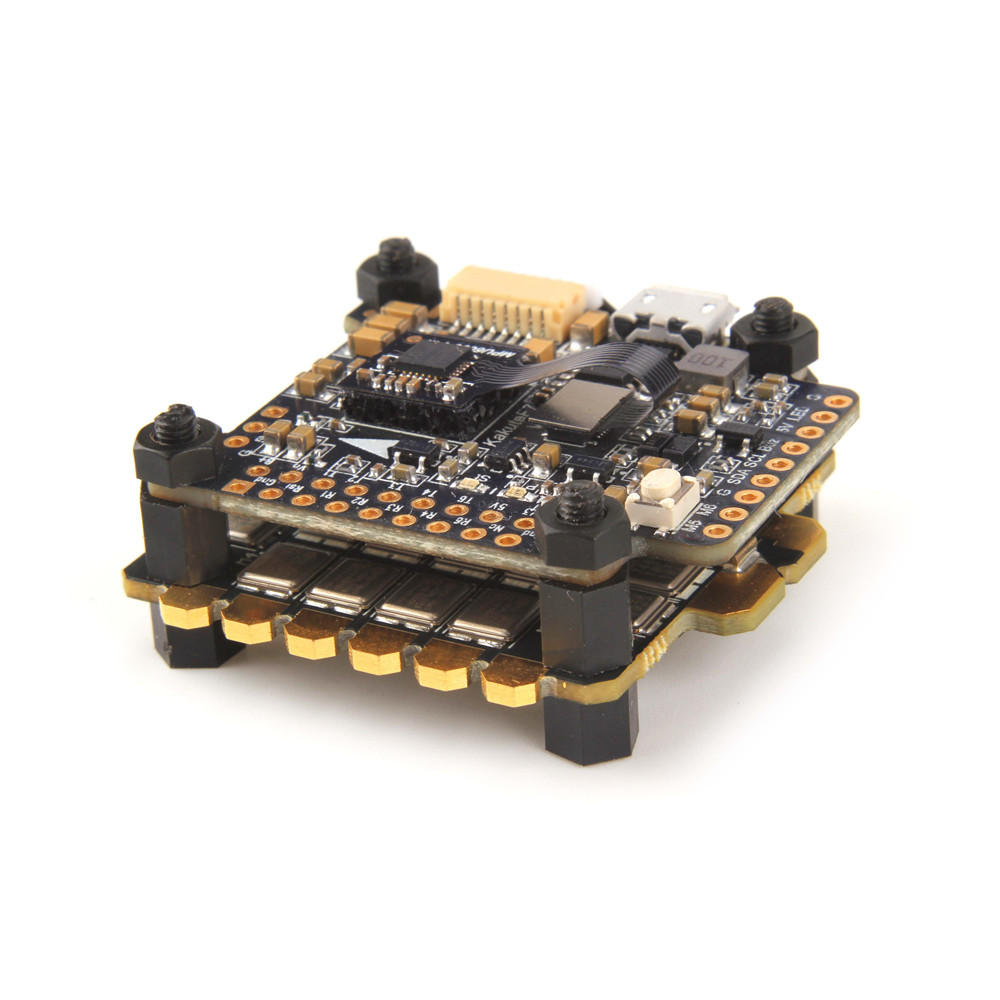

Holybro Kakute F7 V1.5 Flight Controller & 65A BL_32 Tekko32F3 Metal 4in1 ESC 4-6S Stack Combo for RC Drone

$133.53

Holybro Kakute F7 V1.5 Flight Controller65A BL_32 Tekko32F3 Metal 4in1 ESC 4-6S Stack Combo for RC DroneSpecification:Brand Name: HolybroItem Name: F7 Flight Controller65A 4 in 1 ESC StackKakute F7 V1.5 Flight Controller ( Manual )Brand name: HolybroItem name: Kakute F7 V1.5MCU: STM32F745 32-bit processorIMU: MPU6000 (SPI)Barometer: BMP280Current Sensor: Approximately 130 amps maximum measurable valueUSB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART)6 hardware UARTS (UART1,2,3,4,6,7)All UARTS support hardware inversion. SBUS, SmartPort, and other inverted protocols work on any UART without uninvert hack.Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only. PPM and PWM receivers are not supported.TF card for Blackbox loggingDimensions: 35x41x7mm (includes foam-mounted gyro board in height)Mounting Holes: Standard 30.5mm square to center of holesWeight: 8gTekko32F3 Metal 4in1 ESC ( Manual)Brand Name: HolybroModel: Tekko32F3 MetalF3(M4 Core) MCU, Runs BLHELI32 firmware, the MCU works at 108MhzThe 4in1 has onboard analog current sensor, and TLM function(then no current reading over TLM)Using metal case mosfet for better Heat dissipationSupports Lipo 4-6SExt. cap needed for 6s (470uf 35v for 6s usage.)Size:42 x 42 mmMounting holes:30.530.5mmWeight: 12gNotice:The air flow is very import if you want to run this 4in1 in high current.The input cable(from lipo to 4in1), should be good soldered, and at least 12AWGFeatures:- The 4in1 has onboard

Buy product

SKU: 2202_10523_1415428 Category:
Description

Description

Holybro Kakute F7 V1.5 Flight Controller65A BL_32 Tekko32F3 Metal 4in1 ESC 4-6S Stack Combo for RC DroneSpecification:Brand Name: HolybroItem Name: F7 Flight Controller65A 4 in 1 ESC StackKakute F7 V1.5 Flight Controller ( Manual )Brand name: HolybroItem name: Kakute F7 V1.5MCU: STM32F745 32-bit processorIMU: MPU6000 (SPI)Barometer: BMP280Current Sensor: Approximately 130 amps maximum measurable valueUSB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART)6 hardware UARTS (UART1,2,3,4,6,7)All UARTS support hardware inversion. SBUS, SmartPort, and other inverted protocols work on any UART without uninvert hack.Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only. PPM and PWM receivers are not supported.TF card for Blackbox loggingDimensions: 35x41x7mm (includes foam-mounted gyro board in height)Mounting Holes: Standard 30.5mm square to center of holesWeight: 8gTekko32F3 Metal 4in1 ESC ( Manual)Brand Name: HolybroModel: Tekko32F3 MetalF3(M4 Core) MCU, Runs BLHELI32 firmware, the MCU works at 108MhzThe 4in1 has onboard analog current sensor, and TLM function(then no current reading over TLM)Using metal case mosfet for better Heat dissipationSupports Lipo 4-6SExt. cap needed for 6s (470uf 35v for 6s usage.)Size:42 x 42 mmMounting holes:30.530.5mmWeight: 12gNotice:The air flow is very import if you want to run this 4in1 in high current.The input cable(from lipo to 4in1), should be good soldered, and at least 12AWGFeatures:- The 4in1 has onboard
