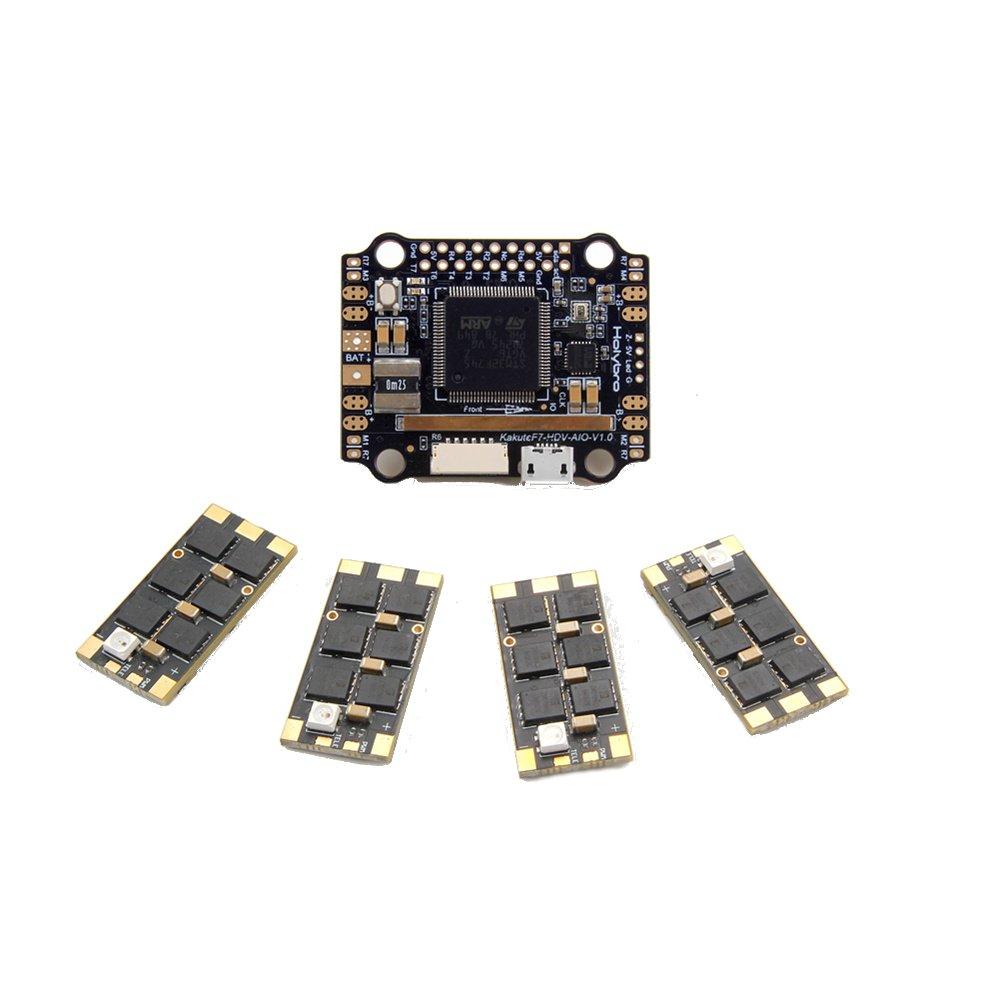

Holybro Kakute F7 HDV AIO & 4*Tekko32 F3 35A ESC For DJI Air Unit For FPV Racing RC Drone

$112.54

Holybro Kakute F7 HDV AIOOverviewHolybro Kakute F7 HDV All-In-One is designed to work with the DJI FPV VTx module. The GH portavailable on the board makes it much more convenient for you to connect Holybro Kakute F7 HDV AIOto the DJI FPV VTx, for both signal and power supply.Features: Supports Betaflight. High-performance / low-noise IMU. MPU6000 with 6-axis gyro and accelerometer. Ready for autonomous flight: Integrated BMP280 barometer and SCL/SDA for use with externalGPS/magnetometer units. Dedicated bootloader button for easy firmware flashing. Low-profile design fits into even very compact frames. 2 oz. copper PCB allows up to 120A maximum continuous current. Input voltage 7v to 42v. Power the board directly from the flight pack, up to 6S (on B+ padonly). Automatic voltage monitoring. No need to run a separate vBat wire for voltage monitoring; theKAKUTE F7 HDV AIO monitors voltage directly from the power supply. Filtered voltage output for clean, noise-free video. 2 On-board regulators output 5V and 8V. 5Voutput up to 1.5A to power peripherals such as receiver, FPV camera, or LED strip. 8V output upto 2A to DJI FPV VTx. Supports BLHeli pass-through for easy ESC upgrade and configuration.Specifications: MCU: STM32F745 32-bit processor IMU:MPU6000 Barometer: BMP280 USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART) 6 hardware UARTS (UART1,2,3,4,6,7) All UARTS support hardware inversion. SBUS, SmartPort, and other inverted protocols work onany UAR

Buy product

SKU: 2202_10523_1594456 Category:
Description

Description

Holybro Kakute F7 HDV AIOOverviewHolybro Kakute F7 HDV All-In-One is designed to work with the DJI FPV VTx module. The GH portavailable on the board makes it much more convenient for you to connect Holybro Kakute F7 HDV AIOto the DJI FPV VTx, for both signal and power supply.Features: Supports Betaflight. High-performance / low-noise IMU. MPU6000 with 6-axis gyro and accelerometer. Ready for autonomous flight: Integrated BMP280 barometer and SCL/SDA for use with externalGPS/magnetometer units. Dedicated bootloader button for easy firmware flashing. Low-profile design fits into even very compact frames. 2 oz. copper PCB allows up to 120A maximum continuous current. Input voltage 7v to 42v. Power the board directly from the flight pack, up to 6S (on B+ padonly). Automatic voltage monitoring. No need to run a separate vBat wire for voltage monitoring; theKAKUTE F7 HDV AIO monitors voltage directly from the power supply. Filtered voltage output for clean, noise-free video. 2 On-board regulators output 5V and 8V. 5Voutput up to 1.5A to power peripherals such as receiver, FPV camera, or LED strip. 8V output upto 2A to DJI FPV VTx. Supports BLHeli pass-through for easy ESC upgrade and configuration.Specifications: MCU: STM32F745 32-bit processor IMU:MPU6000 Barometer: BMP280 USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART) 6 hardware UARTS (UART1,2,3,4,6,7) All UARTS support hardware inversion. SBUS, SmartPort, and other inverted protocols work onany UAR
