$10.17

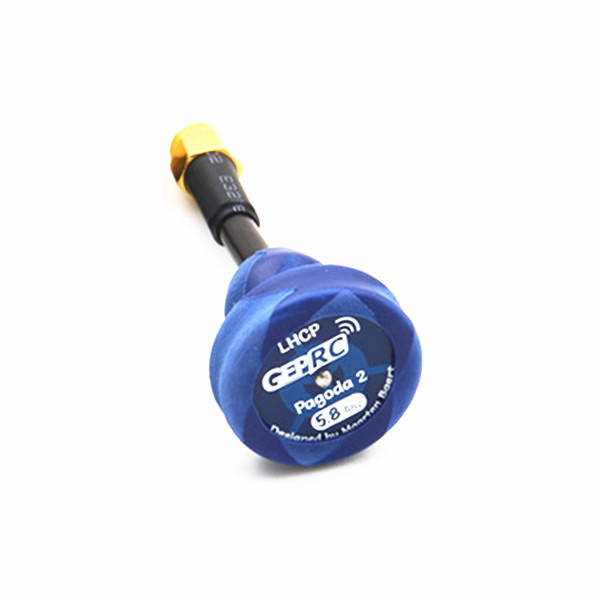

Summary:Pagoda 2 is based on Maarten Baert optimized circular polarized antenna, Produced by GEPRC customize a 5.8 G antenna, is the scope of its bandwidth of 500 MHZ (5.55 to 6.05 GHz). Structure consists of three layers of 1 oz copper foil embedded PCB, only 8 grams of weight,use special heat shrink packaging, solid, durable, and beautiful. PCB materials used 1.0 mm FR4, 1 oz copper foil.Pagoda 2 has natural advantages, axis ratio is below 1.3, standing wave ratio of 1.2.Can be used for transmitting antenna and receiving antenna (transmit and receive all use pagoda2 antenna is better).Specification:Model: GEP-Pagoda2Net weight: 9gGain: 2dBiLength: 60mmOperating frequency: 5.8GHzBandwidth range: 500MHz (5.55 – 6.05 GHz)Match: Return loss (S11) -20 dB, VSWR 1.22 (center frequency)Axial Ratio: 1.3Radiation efficiency: 95%Interface type: SMA, RP-SMAPackage Included:1 x GEPRC Pagoda 2 5.8GHz AntennaNote: The blue antenna is LHCP, green antenna is RHCP
Buy product
