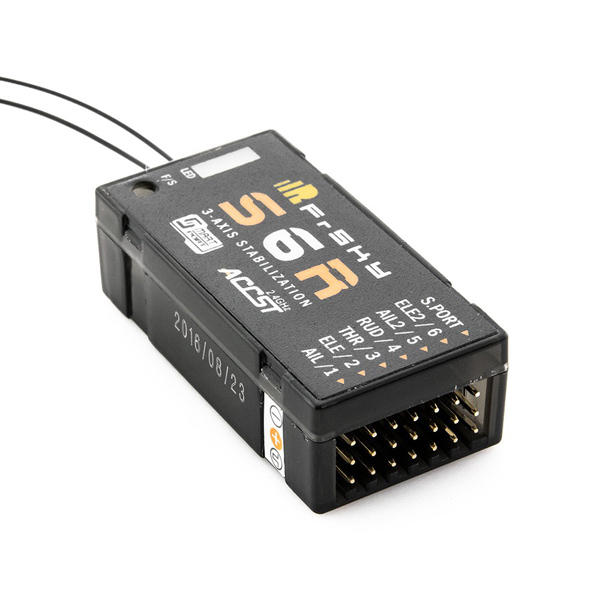

FrSky S6R 2.4G 6CH ACCST Receiver With 3-Axis Stabilization And Smart Port Telemetry for RC Airplane

Description

FrSky S6R 2.4G 6CH ACCST Receiver With 3-Axis Stabilization And Smart Port TelemetryFrSky has combined the popular FrSky receiver technology with a super stable 3-axis system for fixed wing aircraft. The S6R is based on the STM32 platform, with both receiver and flight control functions. The S6R includes a three-axis gyroscope and three-axis accelerometer sensor module, with settings that are programmable via FrSky radios or the PC configuration tool (with FrSky STK). Besides six-channel receiver function, the S6R also has stability augmentation, automatic level, crane, sideward flight, and shutdown functions of conventional airfoils. Flying wing and V-tail models only support stability augmentation, automatic level and shutdown functions.Description:Brand Name: FrSkyItem Name:S6R 2.4G 6CH ACCST ReceiverCompatibility :FrSky Taranis X9D Plus/X9E/Horus X12S/XJT in D16 modeS6R-EU only works with FrSky Taranis X9D Plus-EU/X9E-EU/Horus X12S-EU/XJT-EU in D16 modeModel:6CH receiver with buil-in 3-axis gyro and 3-axis accelerationDimension:47.42*23.84*14.7mm(L*W*H)Weight :12.1gOperating Range:full rangeOperating Voltage Range:4.0~10VOperating Current :100mA@5VNumber of Channels :6CH (1~6CH from conventional channel outputs)Measurement Range:4gFeatures:* Built-in 3-axis gyro and 3-axis accelerometer sensor module* Has RSSI PWM output (0~3.3V) onboard* Built-in battery voltage sensor* Smart Port enabled* Fail safe* Small and lightweight (only 12.1g)* Wide voltage range (4~10V)* Firmwar
