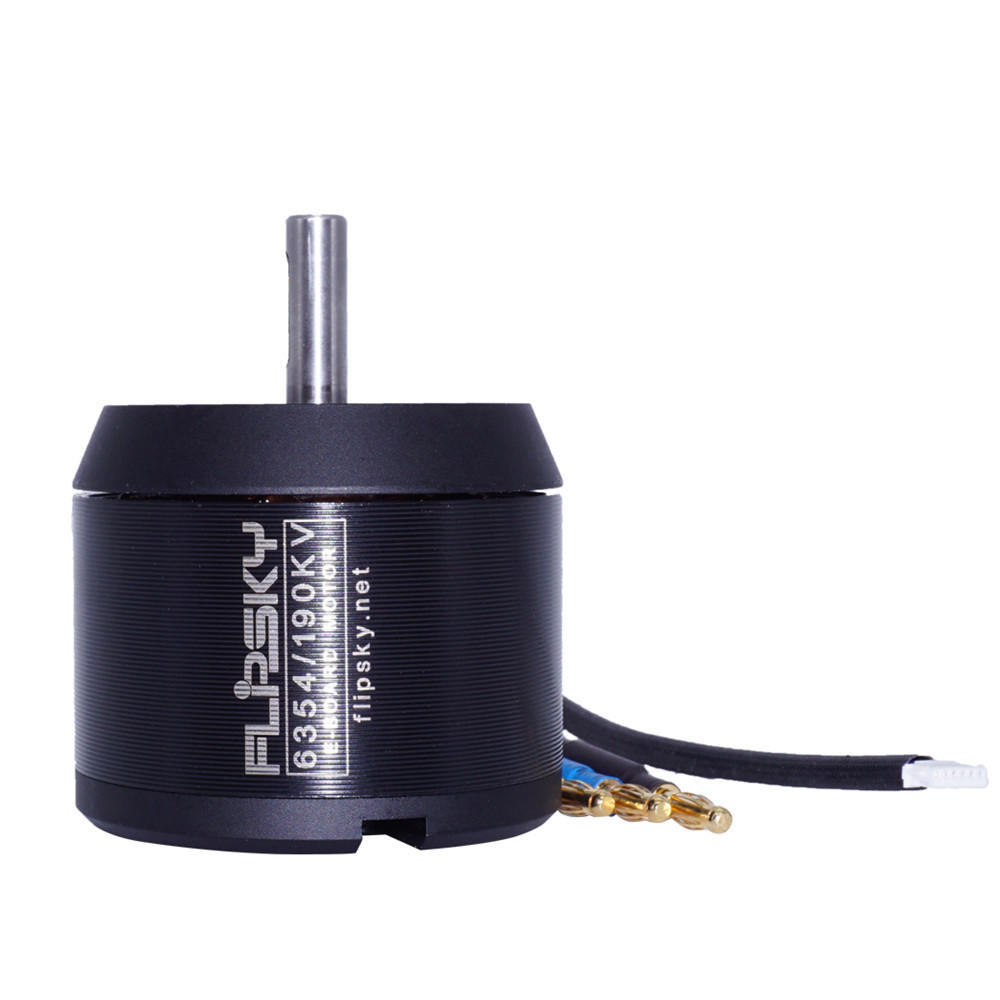

Flipsky 6354 190KV 2450W Brushless Sensored Motor Shaft 8mm for Electric Skateboard Rc Models

$71.41

Description:Brand:FlipskyNo:6354Weight: 1.23 lb / 0.56 kgPackaging weight:about 800gPackaging size:115mm*175mm*90mmMainly fit for electric skateboards and electric bikes, as well as underwater propellers and robots, can be used with large aircraft modelsMotor Spec:Motor KV: 190KVIdle current: 1.2AMotor Resistance: 0.053OhmMax. power: 2450WMax current:65ABattery type: 4-12SMax volts:12SMax Torque: 7NmRecommend ESC: 3-12S 50A (FSESC4.12 50A or FSESC 6.6 60A)Diameter(mm): 63.4Length(mm): 57SHAFT: Diameter 8mm, 24mm length, 3×1.5 keyway slot.Motor Wire: 130mm silicone 12AWG wire with 4.0mm Gold Bullet Connector Female.Wire configuration:Blue = ABlack = BYellow = CStator: 0.2mm thickness lamination japan steelMagnet: N42SH high temp curve magnetSensor Wire: Standard RC Sensor Wire JST-ZH 6pin 1.5mm pitchInternal PCB with 120 Degree Hall Effect Sensors.Motor can be used with or without a sensor. Sensorless operation is most common.VESC Sensor Wires required to use with VESC.Wire configuration:Red = 5vWhite = TempBlue = AYellow = CGreen = BBlack = GNDScrews(the packaging are not included):The screws used for the motor are M4x8mm metric bolts. Using our motor mounts, we recommend using M4x8mm Socket Cap bolts.Packageincluded:1X 6354 190kv 2640W Motor((Fits 63mm Motor Mount)

Buy product

SKU: 2202_10523_1323575 Category:
Description

Description

Description:Brand:FlipskyNo:6354Weight: 1.23 lb / 0.56 kgPackaging weight:about 800gPackaging size:115mm*175mm*90mmMainly fit for electric skateboards and electric bikes, as well as underwater propellers and robots, can be used with large aircraft modelsMotor Spec:Motor KV: 190KVIdle current: 1.2AMotor Resistance: 0.053OhmMax. power: 2450WMax current:65ABattery type: 4-12SMax volts:12SMax Torque: 7NmRecommend ESC: 3-12S 50A (FSESC4.12 50A or FSESC 6.6 60A)Diameter(mm): 63.4Length(mm): 57SHAFT: Diameter 8mm, 24mm length, 3×1.5 keyway slot.Motor Wire: 130mm silicone 12AWG wire with 4.0mm Gold Bullet Connector Female.Wire configuration:Blue = ABlack = BYellow = CStator: 0.2mm thickness lamination japan steelMagnet: N42SH high temp curve magnetSensor Wire: Standard RC Sensor Wire JST-ZH 6pin 1.5mm pitchInternal PCB with 120 Degree Hall Effect Sensors.Motor can be used with or without a sensor. Sensorless operation is most common.VESC Sensor Wires required to use with VESC.Wire configuration:Red = 5vWhite = TempBlue = AYellow = CGreen = BBlack = GNDScrews(the packaging are not included):The screws used for the motor are M4x8mm metric bolts. Using our motor mounts, we recommend using M4x8mm Socket Cap bolts.Packageincluded:1X 6354 190kv 2640W Motor((Fits 63mm Motor Mount)
