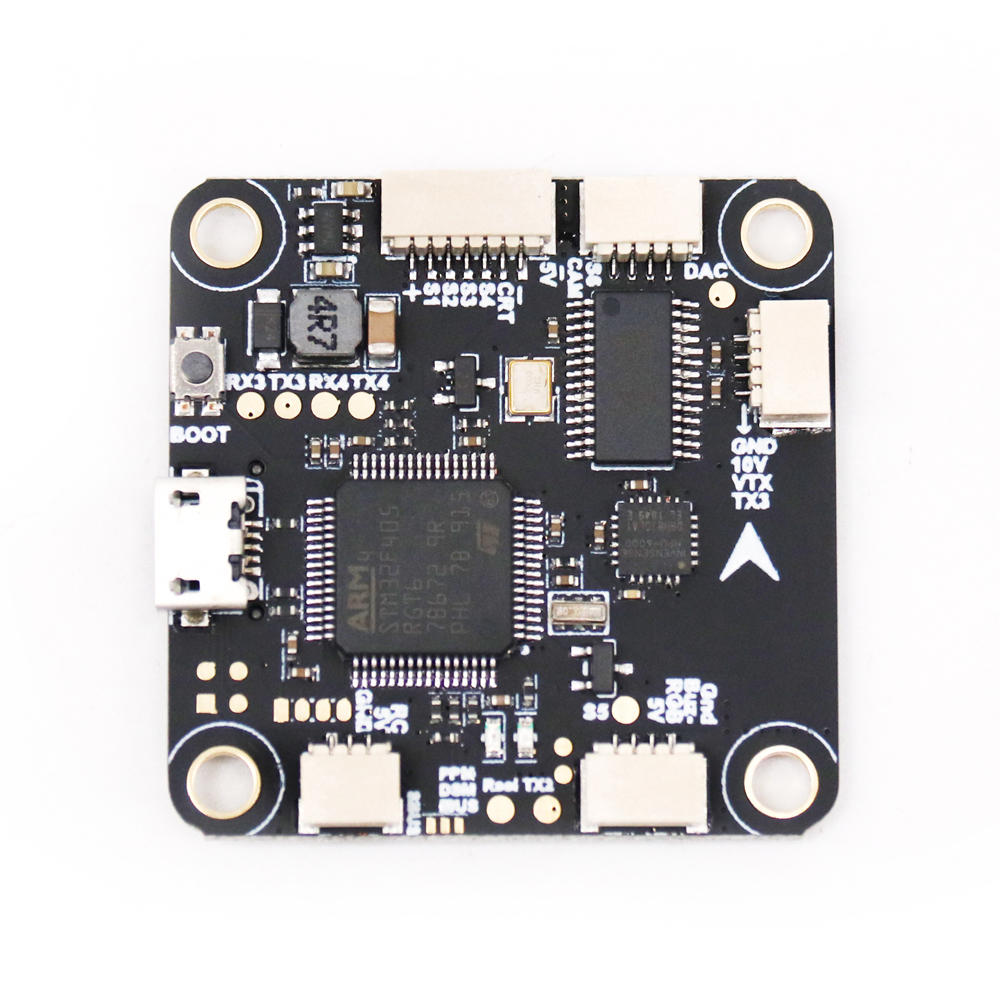

Eachine LAL5 228mm 4K FPV Racing Drone Spare Part 2-6S F405 Bluetooth Flight Controller 30.5×30.5mm

Description

Eachine LAL5 228mm 4K FPV Racing Drone Spare Part F405 Bluetooth Flight ControllerSpecification:EACHINE Customized LAL-F405 Bluetooth Flight ControllerSTM32F405 ChipMPU: MPU6000 (via SPI)Input voltage: support 2-6S Lipo inputOnboard Bluetooth module, support APP configuration via smartphoneFirmware: MATEKF405Onboard German Bosch BMP280 high precision barometerFlight control onboard OSD chip, support DMA mode (use F4 MCU to control OSD), you can use BetaFlight to adjust softPiece adjustment parameterBuilt-in 5v/2A; 10V/2A BEC outputReserve MicroSD BlackBoxReserve 5 serial ports and I2C interface for convenient GPS access (Bluetooth occupies TX5.RX5)Supports multiple types of receivers (eg SBUS, SUMH, SUMD, SPEKTRUM1024/2048, XBUS, PPM, etc.Type of receiver)With LED programming signal output port, support programmable LED light strip, can be adjusted by flying control with color and flash modeHas a voltage monitoring port (BAT) and a current monitoring port (CRT) to monitor battery voltage and current (requires additional power)Flow meter)With buzzer output port, support for external alarm buzzer for sound warning or notification of aircraft flight statusOnboard 10V BEC, providing a cleaner image displayAll interfaces are available in socket and pad options for different peopleSupport for betaflight/inav racing firmwareSize: 37x37mmMounting hole: 30.5×30.5mmWeight: 6.1gPackage Included:1 x F405 Bluetooth Flight Controller
