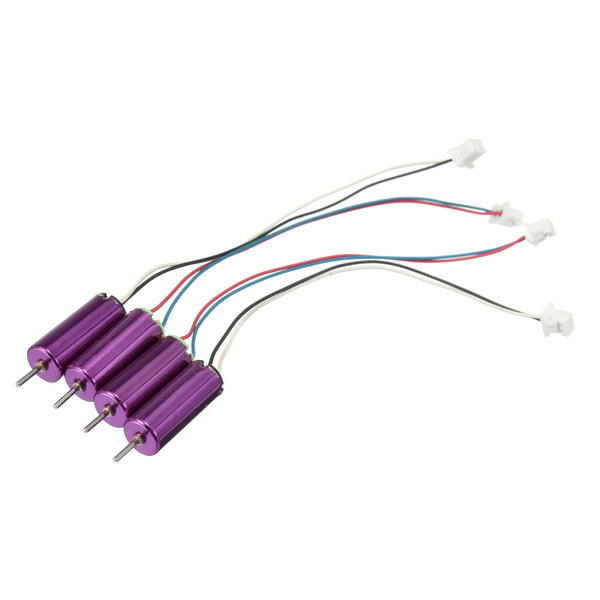

4X Racerstar 615 6x15mm 67000RPM Coreless Motor for Eachine E010 E010S Blade Inductrix Tiny Whoop

Description

4X Racerstar 615 6x15mm 67000RPM Coreless Motor for Eachine E010 E010C E010S Blade Inductrix Tiny WhoopDescription:Motor Diameter: 6.0mmMotor Length: 15mmShaft Diameter: 0.05-0.3mmCable Length: 70mmWeight: about: 1.8g/1pcsOption:Clockwise Motor(With Red Blue Wire), Anti-clockwise Motor(With Black White Wire)Option: With 1.25mm JST PlugColor:PurpleQuantity: 4pcs1.Operating conditionRated voltage3.4V DCDirection of rotationCW and CCWOperating voltage rangeDC2.0–4.5V DCperating temperature range-10-50CMotor positionall position2.Mearsuring conditionMotor positionhorizontal or verticalPower supplyregulated DC power supply assuring unquestionable measuringregulated DC power supply assuring unquestionable measuring10-30C 30-95%If the judgment is questionable,Measurent is to be made based on JIS Standard Testing Condition(20+2C,65+5% )Direction of rotationviewed from output shaft side3.Electrical characteristicsItemsSpecificationStandard valueNo Load speed67000rpm15%67000 rpmNo Load current200mA max180mAStarting voltage0.8V max0.5V DCStall current240mA5%240mATerminal resistance0.9 5%0.9Insulation resistance10MΩ minAT 250V DC betweenmotor terminal and caseCautions:1) Please use the motor in this technology index range for the performance of the motor is affected by environmental temperature seriously.2) It is not allowed to operate in the high temperature with high humidity, and not allowed to contact with corrosive liquid and corrosive gas,should not to be stored and without runnin
